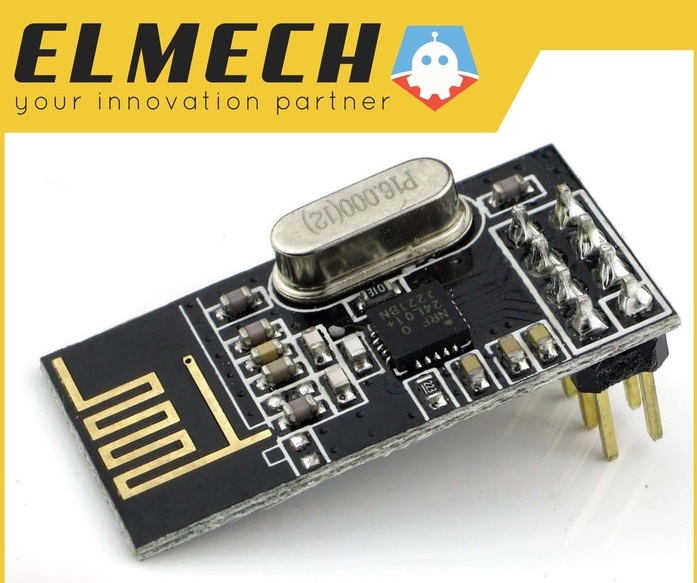

NRF24L01 2.4GHZ WIRELESS RADIO TRANSCEIVER MODULE

Rp 47,400
Kategori Industrial & Tools
Kondisi Barang BARU

The nRF24L01 is a highly integrated, ultra low power (ULP) 2Mbps RF transceiver IC for the 2.4GHz ISM (Industrial, Scientific and Medical) band. With peak RX/TX currents lower than 14mA, a sub μA power down mode, advanced power management, and a 1.9 to 3.6V supply range, the nRF24L01 provides a true ULP solution enabling months to years of battery lifetime when running on coin cells or AA/AAA batteries. The Enhanced ShockBurst™ hardware protocol accelerator additionally offloads time critical protocol functions from the application microcontroller enabling the implementation of advanced and robust wireless connectivity with low cost 3rd-party microcontrollers.

The nRF24L01 module integrates a complete 2.4GHz RF transceiver, RF synthesizer, and baseband logic including the Enhanced ShockBurst™ hardware protocol accelerator supporting a high-speed SPI interface for the application controller allowing easy interface to microcontrollers and is ideal for low cost communication between Arduino compatible devices.



Worldwide 2.4GHz ISM band operation

. Up to 2Mbps on air data rate

. Ultra low power operation

. 11.3mA TX at 0dBm output power

. 12.3mA RX at 2Mbps air data rate

. 900nA in power down

. 22μA in standby-I

. On chip voltage regulator

. 1.9 to 3.6V supply range

. Enhanced ShockBurst™

. Automatic packet handling

. Auto packet transaction handling

. 6 data pipe MultiCeiver



Catatan : Barang ini Dapat Diretur
Product Country-
Product Linewireless radio
Modelcircuit
Fungsiwireless radio
