Detail Produk Turbidity Sensor Module Sensor Kekeruhan Air

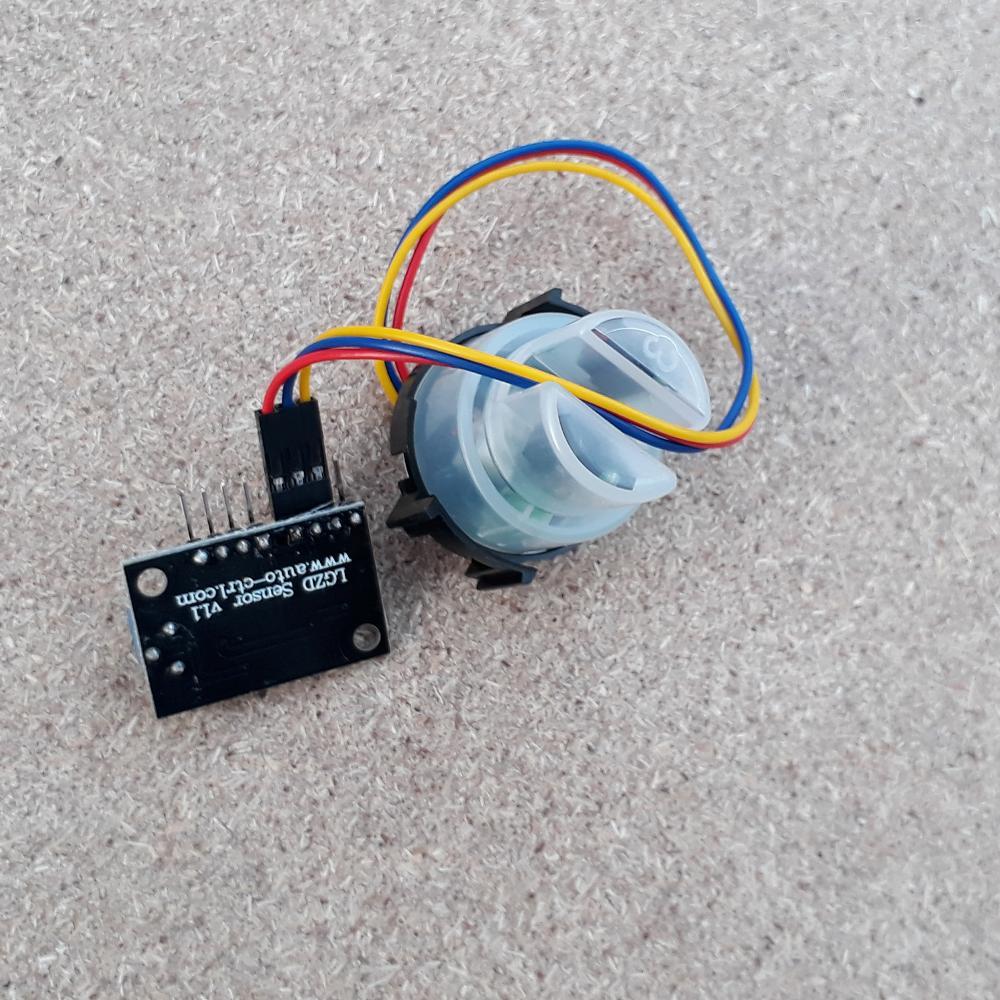

Turbidity Sensor Module Sensor Kekeruhan Air

Rp 294,800

Kategori	Industrial & Tools
Kondisi Barang	BARU

Beli

Lihat Diskusi Lain

Turbidity sensor is the use of optics, liquid solution by light transmittance and scattering rate overall judgment turbidity case, since the amount of turbidity value is gradual, usually detected in a dynamic environment, the turbidity value of the sensor acquisition, the need for external Control AD conversion, the conversion to give the corresponding turbidity case environment, so that the sensor also need to make in order to detect the peripheral circuits in the system, with a waterproof probe, mainly used in washing machines, dishwashers and other equipment turbidity testing can also be used in electronic design, graduation design, electronic competition experiments and other applications.
Technical parameters:
1, the working voltage: DC5V
2, the operating current: 30mA (MAX)
3. Response time: 500ms
4. Insulation resistance: 100 M [Min];
5, an output: analog output 0-4.5V
6, two output modes: high / low signal
HIGH: 5V
Low: 0V
7, operating temperature: - 30 C -80 C;
8, Storage temperature: -10-80 .
9, Weight: 55 g
10, size: 30mm * 20mm * 12mm
Application:
washing machines, dishwashers, industrial control, environmental sewage collection and so on turbidity measurement and control needs of the occasion;
After purchasing stay mailbox provide sensor specification, as well as provide technical guidance services, not to provide product development, programming services

Catatan : Barang ini Dapat Diretur

Product Line	sensor turbidity
Model	sensor
